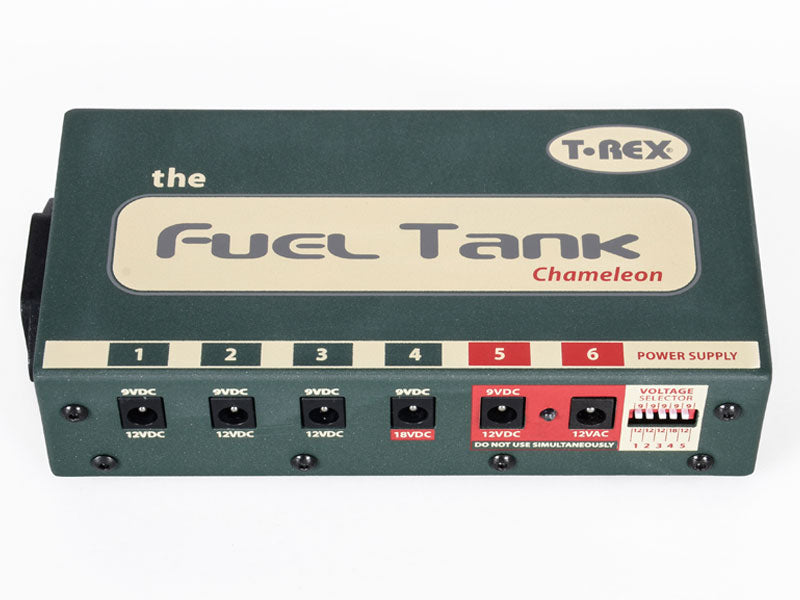

T-Rex Fuel Tank Chameleon

Enter the new Fuel Tank Chameleon, the most versatile power supply T-Rex has ever produced. Built for players with a large number of diverse pedals, Fuel Tank Chameleon offers all the advantages of our other Fuel Tank power supplies, plus an unprecedented 4 separate voltage options. The Fuel Tank Chameleon is only the latest addition to the T-Rex Fuel Tank family. Our original Fuel Tank Classic features 9V DC, 12V DC and 12V AC outlets in three isolated blocks of 500mA each and is ideal for medium-sized pedal boards. It comes with lots of single patch cables and a multiple link cable. The Fuel Tank “Juicy Lucy” powers 5 12V pedals and also offers great extras, like multiple unit linking. The baby of the family – Fuel Tank Junior – is a good choice for a small number of 9V pedals. It offers both current doubling to 240 mA and voltage doubling to 18V.

Note: Place as far away from pedals as possible (preferable at least last in the chain close to Analog/drive pedals) in order to reduce noise interference in the signal chain.

You've got the pedals, we've got the power!

Features:

• 5 outputs each with 300 mA (= 1500 mA)
• Output 5/6 choice of either 9/12v DC or 12v AC
• Choice of 9V DC, 12V DC, 12V AC or 18VDC -150mA
• Noise-cancelling galvanic isolated outputs
• Traditional EI Transformer
• Several different voltage types served
• Current doubler = the possibility of as much as 600 mA

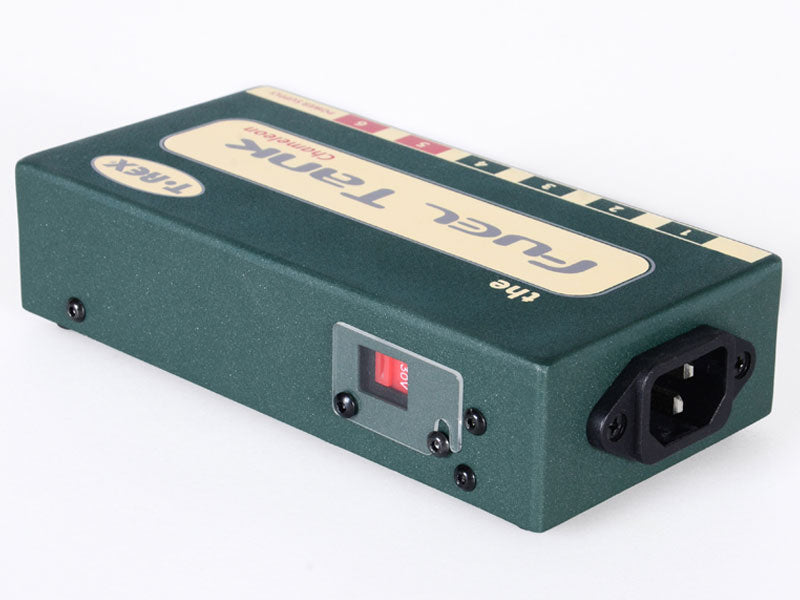

• Switchable 115V or 230V
• Compact, rugged, road-ready design

Tech Specs:

• Chameleon has 6 isolated outputs. All 9V and 12V outlets delivers 300mA. When outlet 4 is switched to 18V DC it delivers 150mA
• All outlets are centre negavive
• Input mains voltage: Switchable 115V or 230V mains
• Rated power consumption: Max. 40W
• Fuse: T315mA/250V

Image is for illustrative purposes only.
