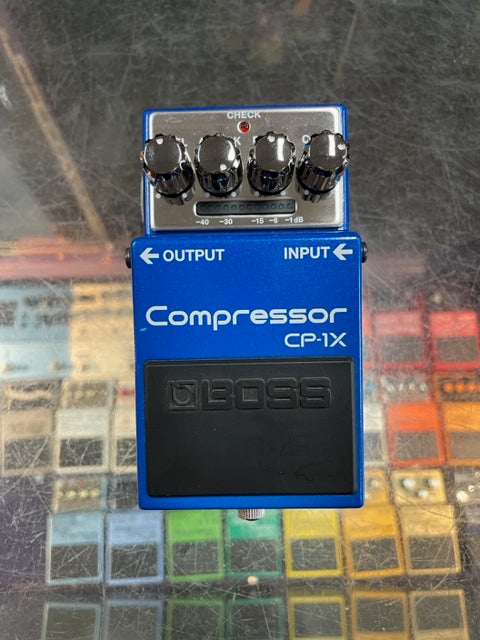

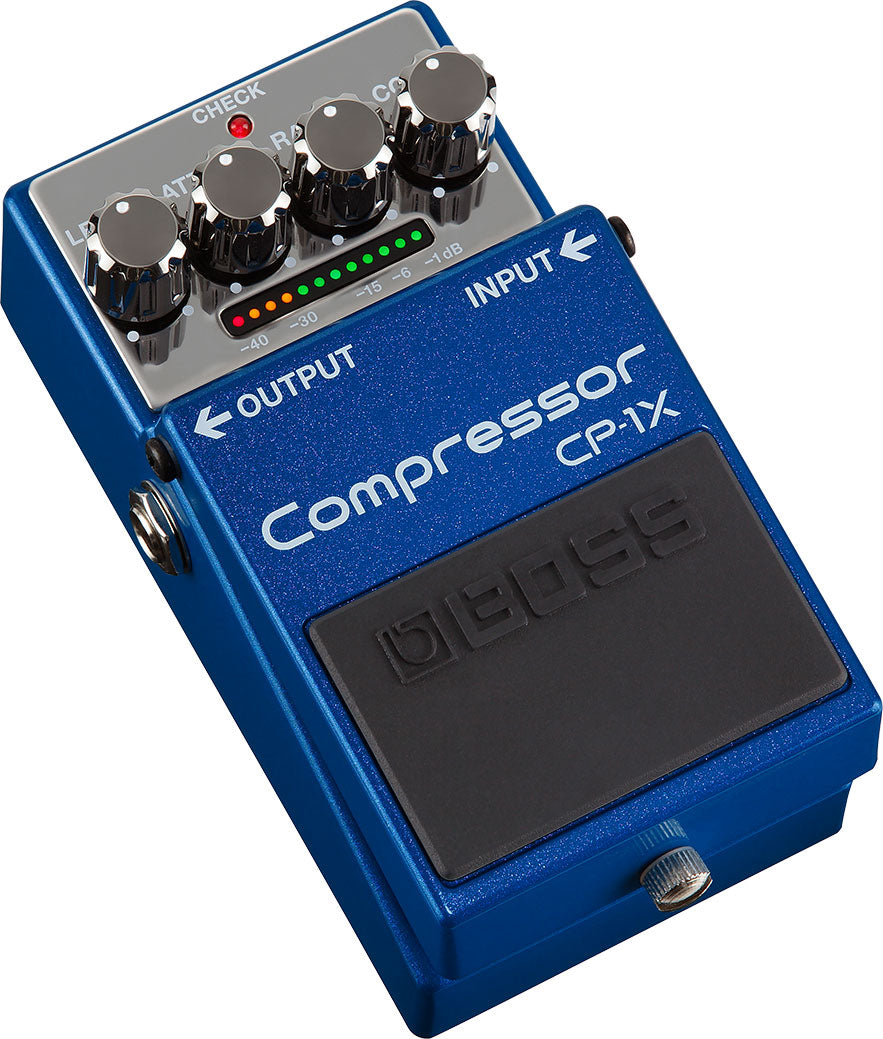

NEXT-GENERATION GUITAR COMPRESSOR FOR EXPRESSIVE PLAYERS
Powered by BOSS’s MDP technology, the CP-1X is a new type of multiband compressor for guitar that preserves the character of your instrument and technique for unlimited musical expression. Intelligent processing analyzes your signal in multiple dimensions as you play, providing advanced dynamics control that never colors or muddies your tone like typical stompbox compressors can. The simple, four-knob interface makes it easy to dial in sophisticated results, while the handy gain reduction indicator always shows you how much compression is being applied. Optimized for all types of guitars, the CP-1X offers next-generation performance for every style of music
- SPECIFICATIONS
- Nominal Input Level
- -20 dBu
- Input Impedance
- 1 M ohm
- Nominal Output Level
- -20 dBu
- Output Impedance
- 1 k ohm
- Recommended Load Impedance
- 10 k ohms or greater
- Bypass
- Buffered bypass
- Controls
- Pedal switch
COMP knob
RATIO knob
ATTACK knob
LEVEL knob - Indicators
- CHECK indicator (Serves also as battery check indicator)
GAIN REDUCTION indicator - Connectors
- INPUT jack
OUTPUT jack
DC IN jack - Power Supply
- Alkaline battery (9V, 6LR61)
AC adaptor (sold separately) - Working Voltage
- 18 V
- Current Draw
- 90 mA
- Expected battery life under continuous use
- Alkaline: Approx. 3 hours
* These figures will vary depending on the actual conditions of use. - Accessories
- Owner's Manual
Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information")
Alkaline battery (9V, 6LR61) - Option (sold separately)
- AC adaptor (PSA series)
- SIZE AND WEIGHT
- Width
- 73 mm
2-7/8 inches - Depth
- 129 mm
5-1/8 inches - Height
- 59 mm
2-3/8 inches - Weight (including battery)
- 450 g
1 lb
