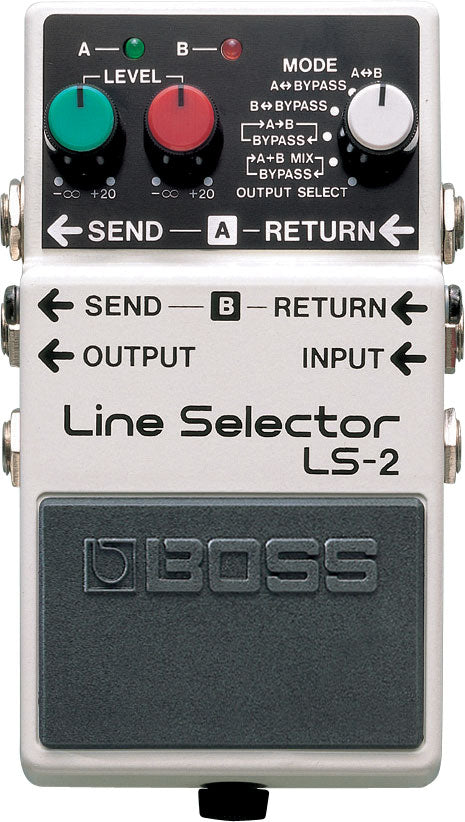

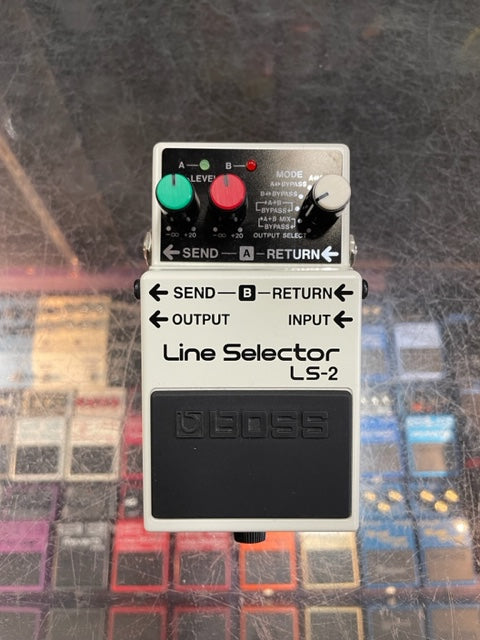

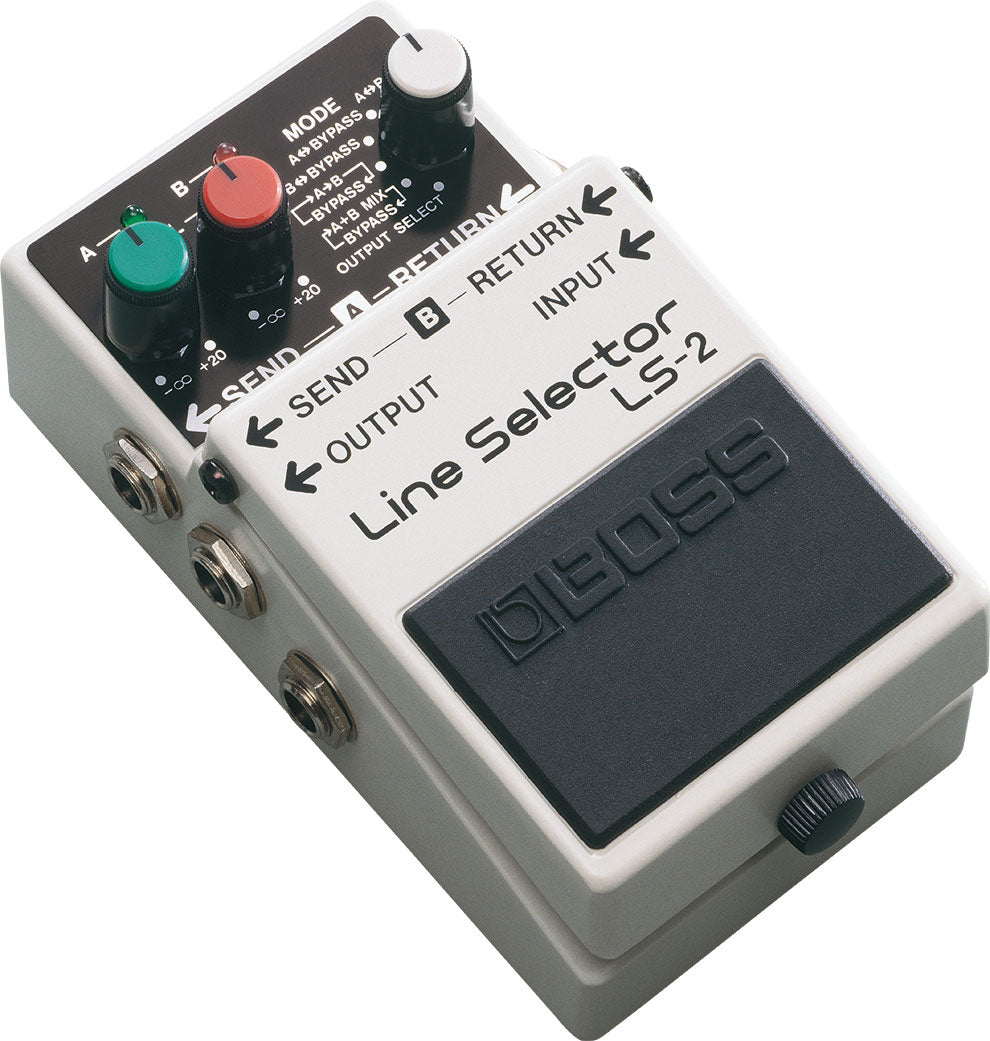

Boss LS-2 Line Selector Pedal
At Guitar Paradise we have a great range of Boss effects pedals available both instore and online through our webstore!
Simplifies Your Setup
The LS-2 Line Selector pedal represents the easy way to switch settings among several effects devices or amplifiers, or route input and output signals. Two line loops and six looping modes provide a wide variety of applications.
Features
- Nominal Input Level -20 dbu
- Input Impedance 1 M ohm
- Nominal Output Level -20 dbu
- Output Impedance 1 k ohms
- Recommended Load Impedance 10 k ohms or greater
- Bypass - Buffered bypass
Controls
- MODE selector switch
- LEVEL knobs A/B
- Pedal switch - Indicator
- Line indicator A/B (Used for indication of check battery)
Connectors
- INPUT jack - 1/4-inch phone type
- SEND jacks A/B - 1/4-inch phone type
- RETURN jacks A/B - 1/4-inch phone type
- OUTPUT jack - 1/4-inch phone type
- DC IN/OUT jack
Power Supply
- Carbon-zinc battery (9 V, 6F22) or Alkaline battery (9 V, 6LR61)
- AC adaptor (PSA series - sold separately)
Current Draw
- 30 mA
- Expected battery life under continuous use
- Carbon - Approx. 14.5 hours
- Alkaline - Approx. 29.5 hours
Accessories
- Carbon-zinc battery (9 V, 6F22)
Options (sold separately)
- AC adaptor - PSA series
- Parallel DC Cord - PCS-20A
