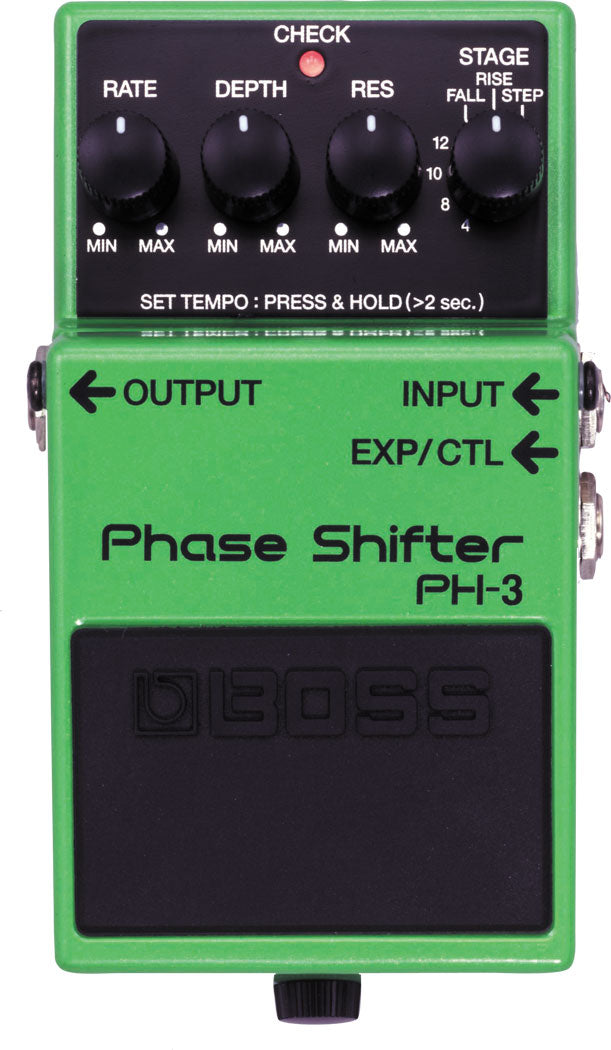

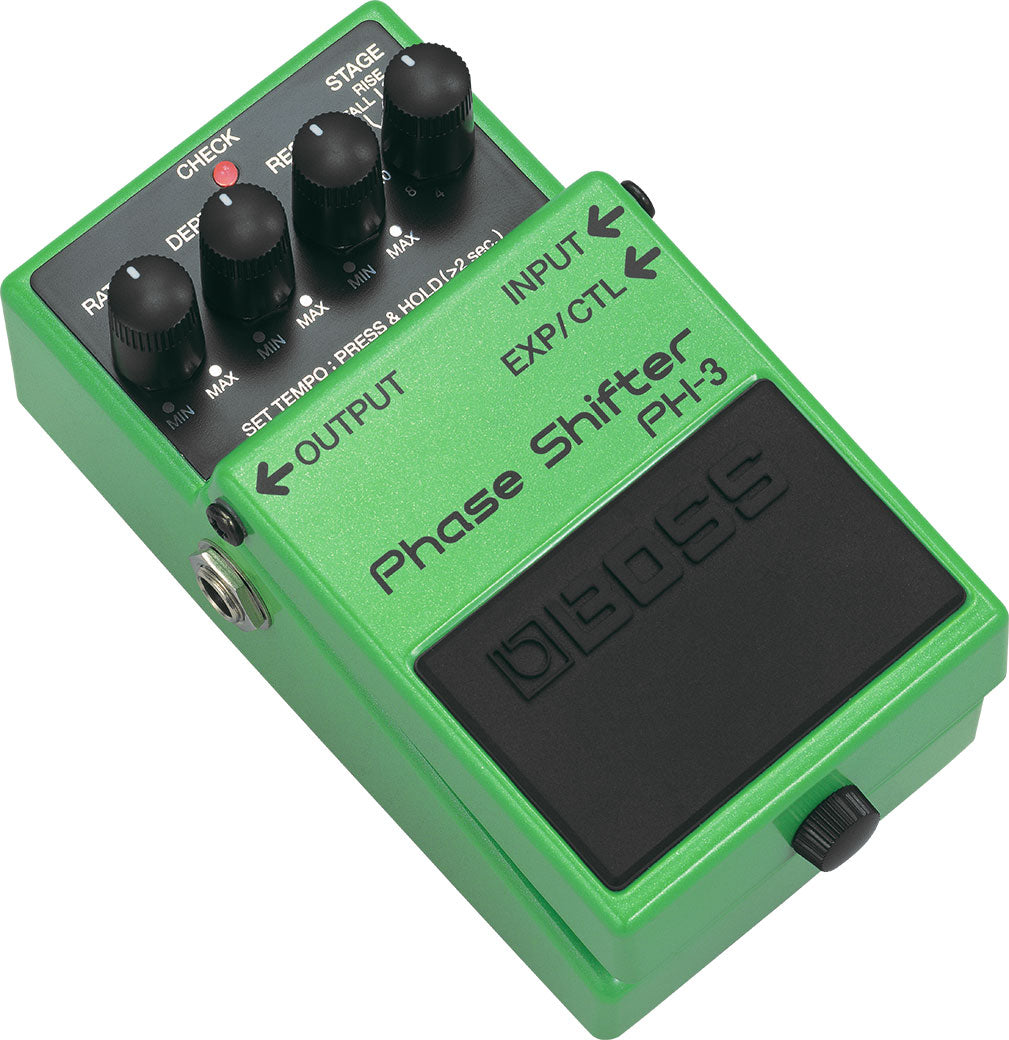

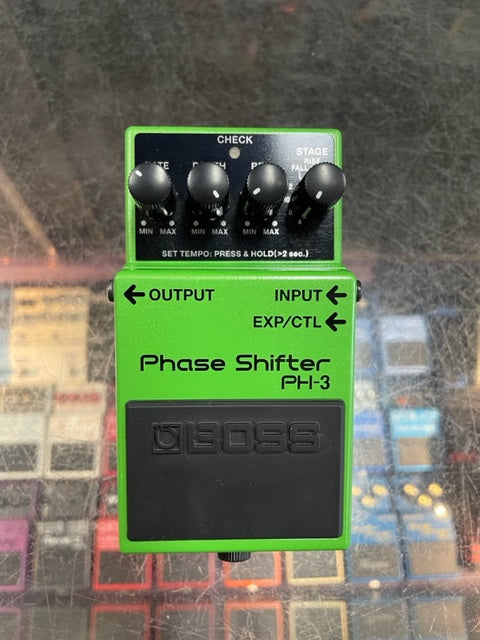

PH-3: Phase Shifter
Features
The BOSS PH-3 Phase Shifter pedal provides a wealth of vintage and modern phasing effects, including new "Rise" and "Fall" modes for unique, unidirectional phasing. Syncing these phasing effects is as simple as tapping the pedal to the desired tempo, while an optional expression pedal provides realtime control of the PH-3's Rate, Filter and Tempo.
Compact pedal with versatile vintage and modern BOSS phasing
New "Rise" and "Fall" modes create unidirectional phasing
Includes classic multi-stage phasers with selectable stages
Realtime control of Rate, Filter, and Tempo via optional expression pedal
Tap tempo sync of phasing effects
BOSS 5-year warranty
Nominal Input Level
-20 dBu
Input Impedance
1 M ohms
Nominal Output Level
-20 dBu
Output Impedance
1 k ohms
Recommended Load Impedance
10 k ohms or greater
Residual Noise Level
-92 dBu (IHF-A, Typ.)
Connectors
INPUT Jack, OUTPUT Jack, EXP/CTL Jack, AC Adaptor Jack (DC 9 V)
Power Supply
DC 9 V: Dry Battery 9 V type (6F22/9 V), AC Adaptor
Current Draw
50 mA (DC 9 V)
Accessories
Dry Battery 9 V type (6F22/9 V)
Options
AC Adaptor (PSA-Series), Expression Pedal (Roland EV-5), Footswitch (FS-5U)
Size and Weight ( incl. battery )Width
73 mm
2-7/8 inches
Depth
129 mm
5-1/8 inches
Height
59 mm
2-3/8 inches
Weight
0.4 kg
0 lbs. 15 oz.
* 0 dBu = 0.775 Vrms
*The specifications are subject to change without notice.
