TRUE VIBRATO EXPRESSION, REBORN WITH WAZA INNOVATION

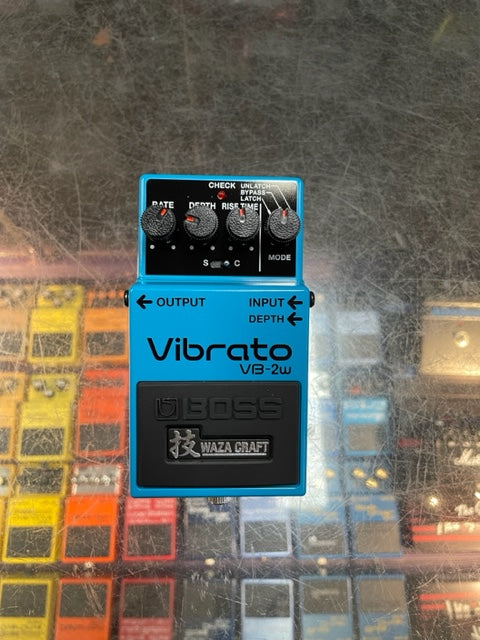

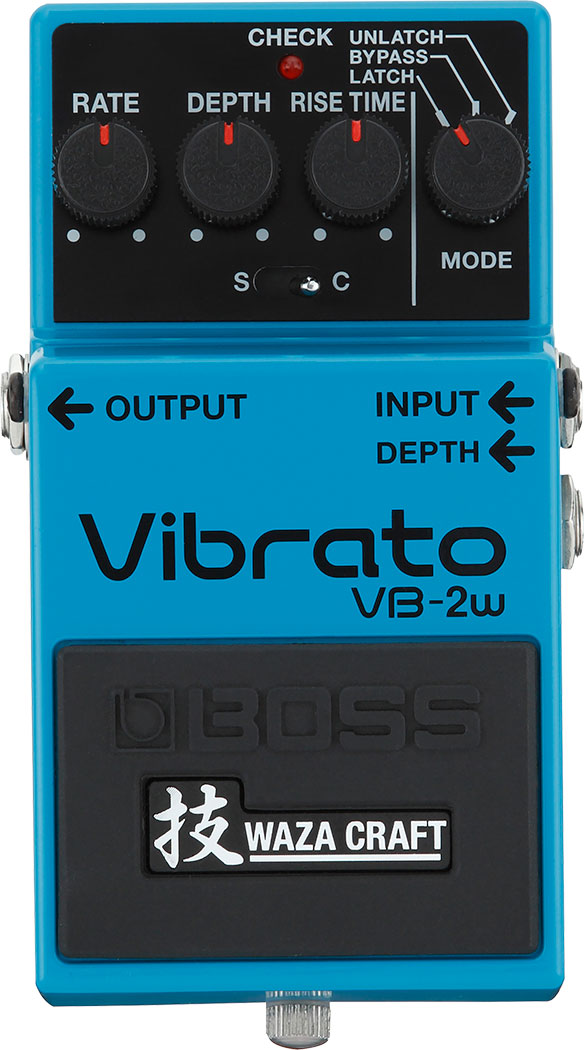

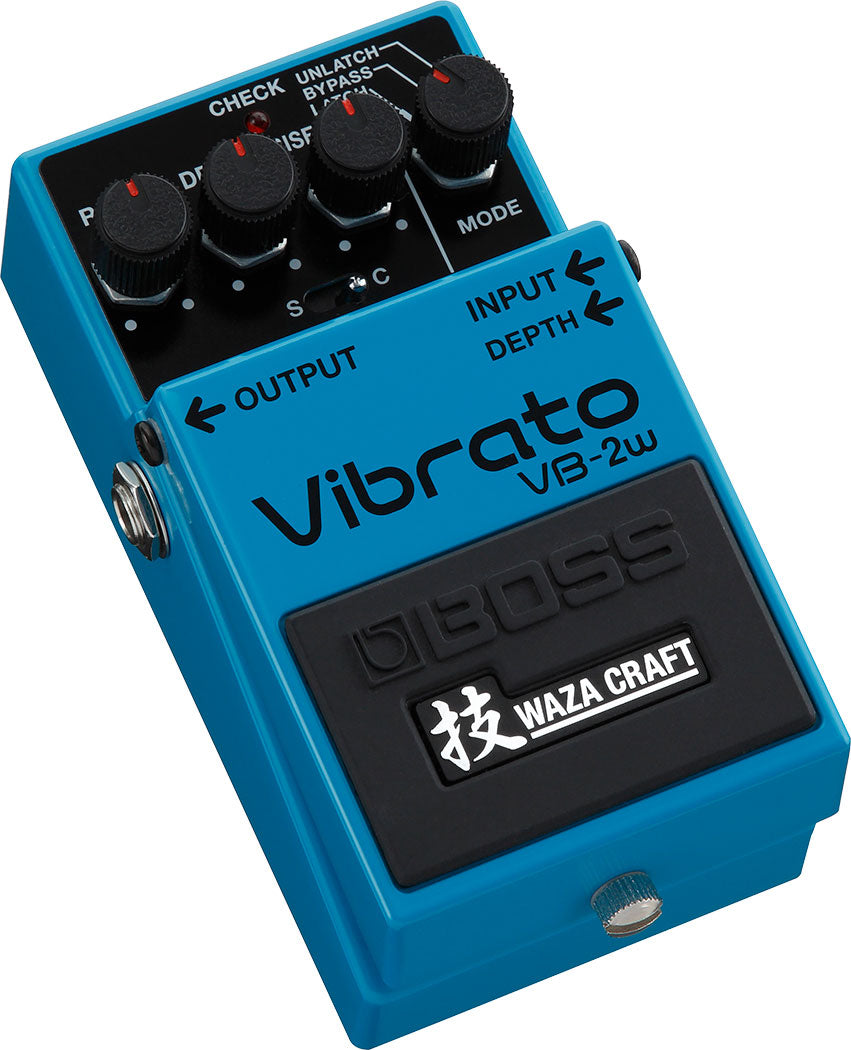

Ahead of its time when it debuted in 1982, the VB-2 Vibrato has been rediscovered by modern players looking to create unique guitar textures with stompbox effects. Thanks to its expressive, one-of-a-kind sound, this rare pedal has gone on to become one of the most valuable BOSS effects in the vintage market. Now, the progressive spirit of the VB-2 has been reborn as the Waza Craft VB-2W. Using all-analog circuitry, the VB-2W authentically reproduces the true pitch-shifted vibrato of the original pedal, and also adds an innovative new vibrato mode and real-time control function for enhanced expression
- SPECIFICATIONS
- Modes
- 3 modes
LATCH
UNLATCH
BYPASS - Nominal Input Level
- -20 dBu
- Input Impedance
- 1 M ohm
- Nominal Output Level
- -20 dBu
- Output Impedance
- 1 k ohm
- Recommended Load Impedance
- 10 k ohms or greater
- Bypass
- Buffered bypass
- Controls
- Pedal switch
Standard/Custom switch
RATE knob
DEPTH knob
RISE TIME knob
MODE knob - Indicator
- CHECK indicator (Serves also as battery check indicator)
- Connectors
- INPUT jack
OUTPUT jack
DEPTH jack
DC IN jack - Power Supply
- Alkaline battery (9V, 6LR61) or Carbon-zinc battery (9V, 6F22)
AC adaptor (sold separately) - Current Draw
- 35 mA
- Expected battery life under continuous use (These figures will vary depending on the actual conditions of use.)
- Alkaline: Approx. 22 hours
Carbon: Approx. 4 hours - Accessories
- Owner's Manual
Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTE," and "Information")
Alkaline battery (9V, 6LR61) - Options (sold separately)
- AC adaptor: PSA series
Expression Pedal: FV-500H, FV-500L, Roland EV-5 - SIZE AND WEIGHT
- Width
- 73 mm
2-7/8 inches - Depth
- 129 mm
5-1/8 inches - Height
- 59 mm
2-3/8 inches - Weight (including battery)
- 450 g
1 lb
