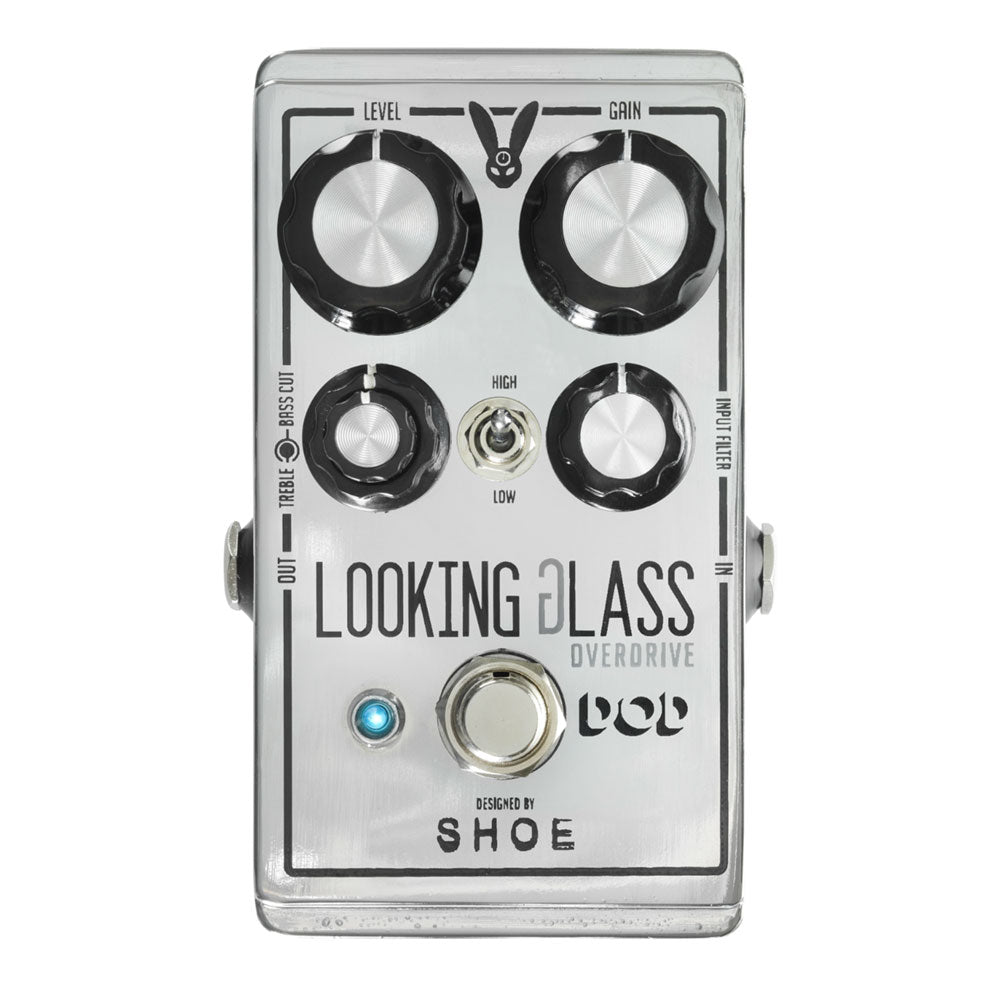

Digitech DOD Looking Glass Overdrive Pedal
At Guitar Paradise we have a great range of DigiTech effects pedals, available both instore and online through our webstore!
Step Through the Looking Glass Into a New World of Overdrive.
Dial in the ideal reflection of your sound with a set of powerful, yet simple controls. You can keep things simple and use the Looking Glass for tone shaping, glassy boost and light overdrive, or go further down the rabbit hole into the raw, psychedelic sounds of a vintage amp pushed to the brink of failure. Featuring a new hybrid of Class-A discrete FET design, the Looking Glass’ asymmetrical clipping is so responsive that it can go from one end of the spectrum to the other with not only a flick of a switch, but with pick attack alone.The Looking Glass Overdrive is collaboration between DOD and the boutique pedal company SHOE Pedals. Christopher Venter of SHOE Pedals is known for his unique circuits, colorful perspective on classic effects, and minimalist design aesthetic.
Built for maximum versatility, the Looking Glass’ unique Input Filter feature allows the player to tame overly bright guitars and interacts with your guitar’s pickups to help you cut through the mix without shredding the audience’s ears. The versatile, intuitive pre-drive Bass Cut and post-drive Treble controls allow you to retain clarity in the mix or dial in any raunchy raw tone you desire. And, there’s enough output and gain on tap to make even the Red Queen lose her head.
The Looking Glass is true bypass, which allows your guitar tone to remain pristine even when the it is off and the power supply input makes it pedalboard friendly.
Unique input filter control
Allows the player to tame overly bright guitars and interacts with your guitar’s pickups to help you cut through the mix without shredding the audience’s ears.
Internal dip switches
The Looking Glass’ Input Filter control is passive and interacts nicely with your guitar’s electronics when not using a buffer in front of it. However, when using buffered pedals before the Looking Glass you may want to adjust the two internal DIP switches to darken the tone further. The left DIP switch increases the input impedance of the pedal. The right DIP switch engages a darker voicing of the Input Filter.
Specifications
- Input - 1/4” TS Unbalanced - 260 kΩ (DIP 1 set to on) ; 235 kΩ (DIP 1 set to off)
- Output - 1/4” TS Unbalanced - 1 kΩ
- Current Draw - (4 mA)
- Bypass - True Bypass
- Power - 9VDC alkaline battery (not included) ; PS0913DC power adapter (optional)
Dimensions
- Length - 4.68" (119mm)
- Height - 2.25" (57mm)
- Width - 2.63" (67mm)
- Weight - 454g
Image is for illustrative purposes only.
