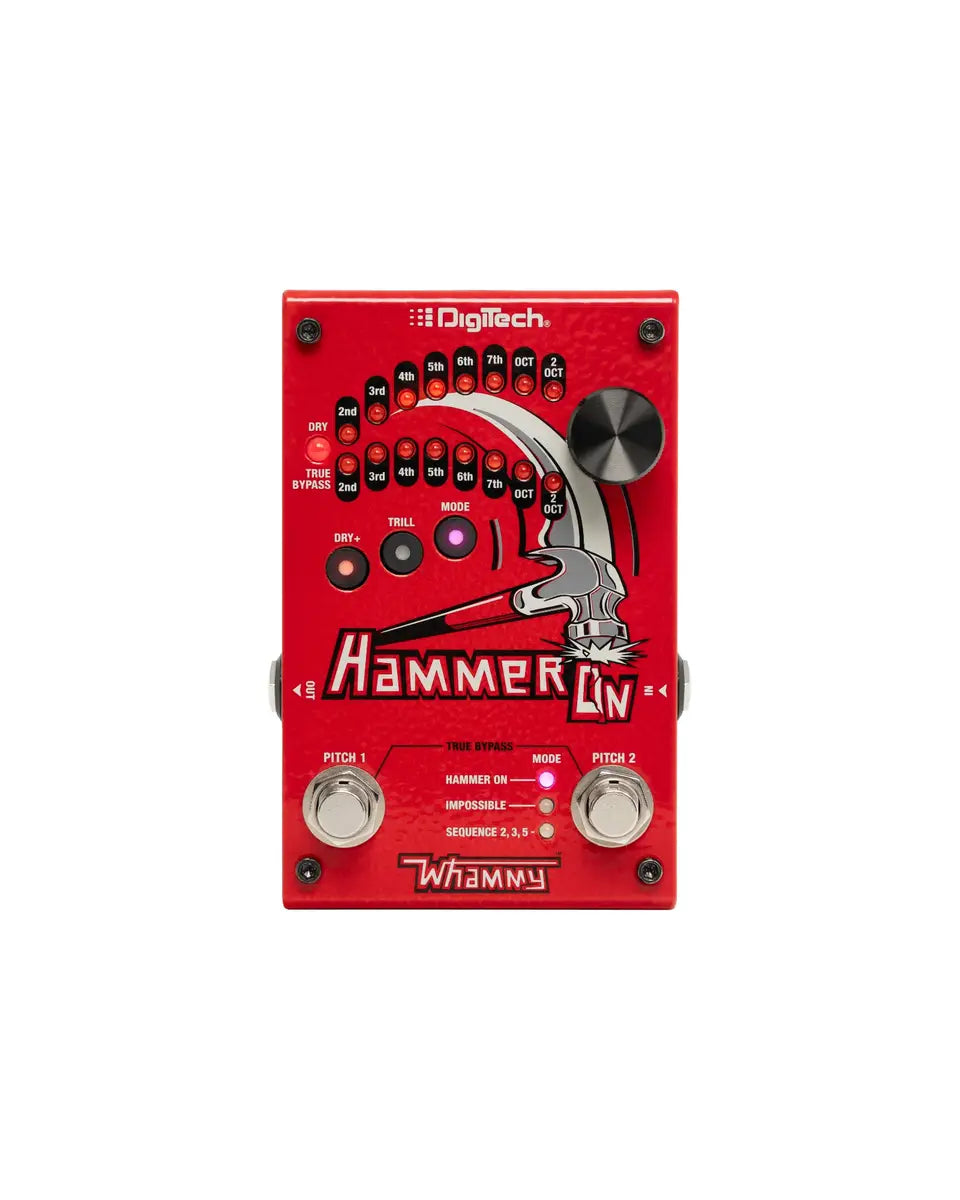

DigiTech HammerOn Instantaneous Pitch-Shifter Pedal

At Guitar Paradise we have a great range of DigiTech effects pedals, available both instore and online through our webstore!

Seven pedals in one

Unleash your creative potential with the DigiTech HammerOn Instantaneous Pitch-Shifter Pedal! As a leader in pitch-shifting technology, DigiTech continues to innovate with this dynamic and expressive pedal, offering 27 pitch options from two octaves up to two sub-octaves. Whether you're crafting harmonious melodies or pushing the boundaries with experimental sounds, the HammerOn pedal delivers effortless control and unparalleled versatility.

With dual-footswitch functionality, you gain instant access to rapid pitch changes and creative effects. The Pitch 1 switch functions as a dedicated hammer-on-style pitch shifter, while the Pitch 2 footswitch offers three distinct modes: Hammer On, Impossible, and Sequence. Customize your pitch sequences with 2-, 3-, and 5-note patterns for unique rhythmic expressions.

The DRY+ button blends your dry signal for harmonious intervals, while the Trill mode unlocks rhythmic potential. Switch between Classic mode (featuring the iconic Whammy algorithm) and Chords mode (from the modern Whammy DT) for endless sonic possibilities. With true bypass construction, your signal remains pristine when the pedal is not in use, ensuring professional-grade performance.

Features

• Instantaneous Pitch-Shifting: Seamlessly integrates into your playing, mimicking traditional hammer-ons and pull-offs.
• 27 Pitch Options: Range from two octaves up to two sub-octaves, giving you extensive tonal versatility.
• Dual Footswitch Design: Pitch 1 for hammer-on-style shifting and Pitch 2 for three unique modes (Hammer On, Impossible, Sequence).
• Sequence Mode: User-configurable 2-, 3-, and 5-note sequences for rhythmic experimentation.
• DRY+ Button: Blends your dry signal to create rich and harmonious intervals.
• Trill Mode: Unlocks rhythmic pitch-shifting potential for dynamic performances.
• Classic and Chords Modes: Choose between the legendary Whammy algorithm and the modern Whammy DT algorithm.
• True Bypass Construction: Keeps your signal clear and unaltered when the pedal is disengaged.
• Pitch Select LEDs: Provide visual indication of pitch and mode settings for on-the-fly adjustments.

Electronics

• Sample Rate - (44.1 kHz in classic mode, 22 kHz in chords mode)
• Frequency Response - (20 Hz-16 kHz (classic mode), 20 Hz-11 kHz (chords mode)
• Signal to Noise Ratio - (> -106dB (A weighted); ref = max level, 22 kHz bandwidth)
• THD - (0.004% @ 1kHz; ref= 1 dBu w/ unity gain)
• A/D/A Conversion - 24-bit

Input / Output

• Input Type - 1/4” Unblanaced TS
• Max Input Level - (+5 dBu)
• Input Inpedance - (1MΩ)
• Output Type - 1/4” Unblanaced TS
• Max Output Level - +10 dBu
• Output Impendance - 1kΩ (Effect enabled or effect bypassed), True Bypass

Physical

• Dimensions - 5.12”(13.00cm) x 3.57”(9.06cm) x 1.84”(4.67cm) (L x W x H)
• Weight - 1.12 lbs. (508g)
