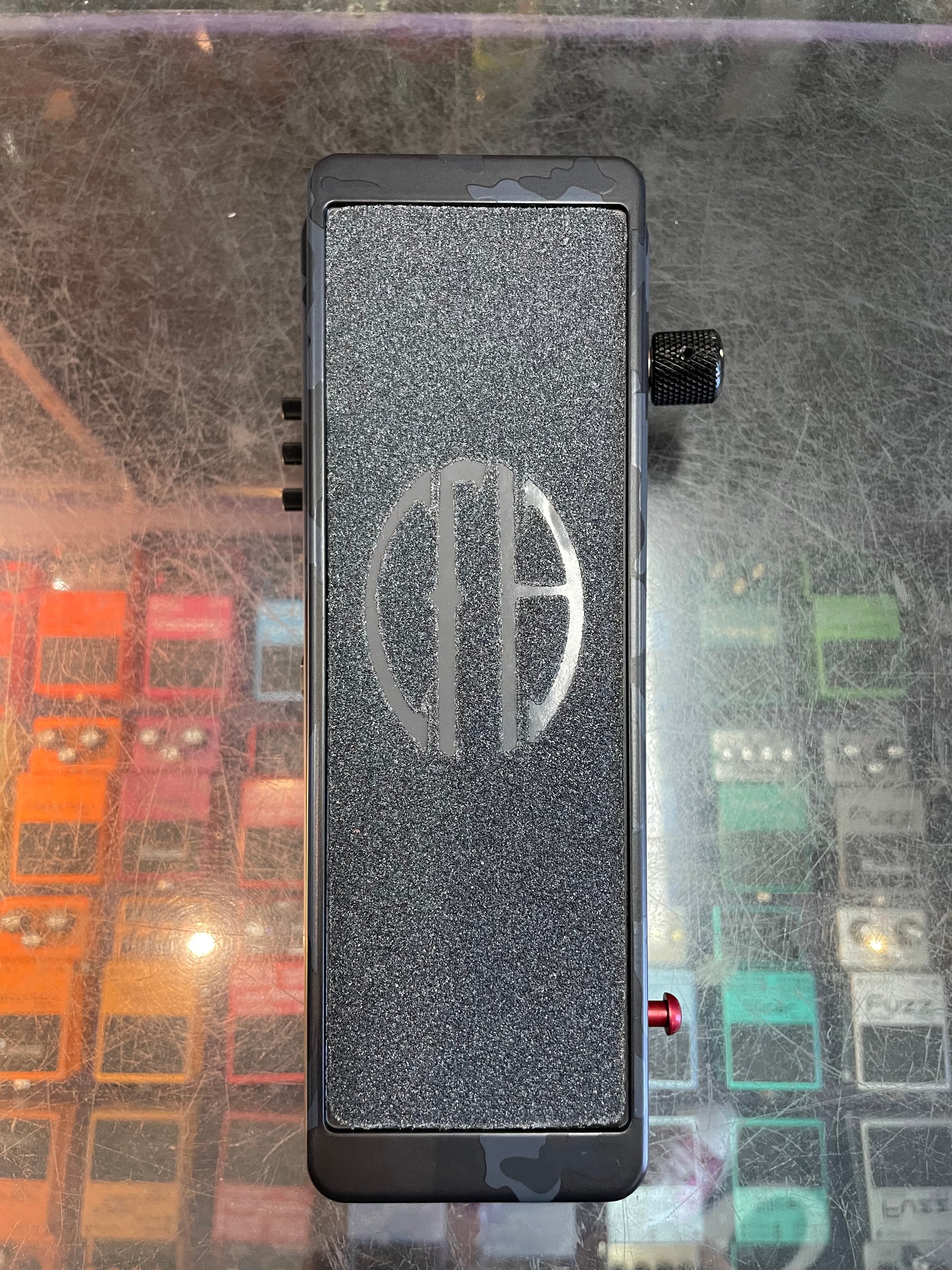

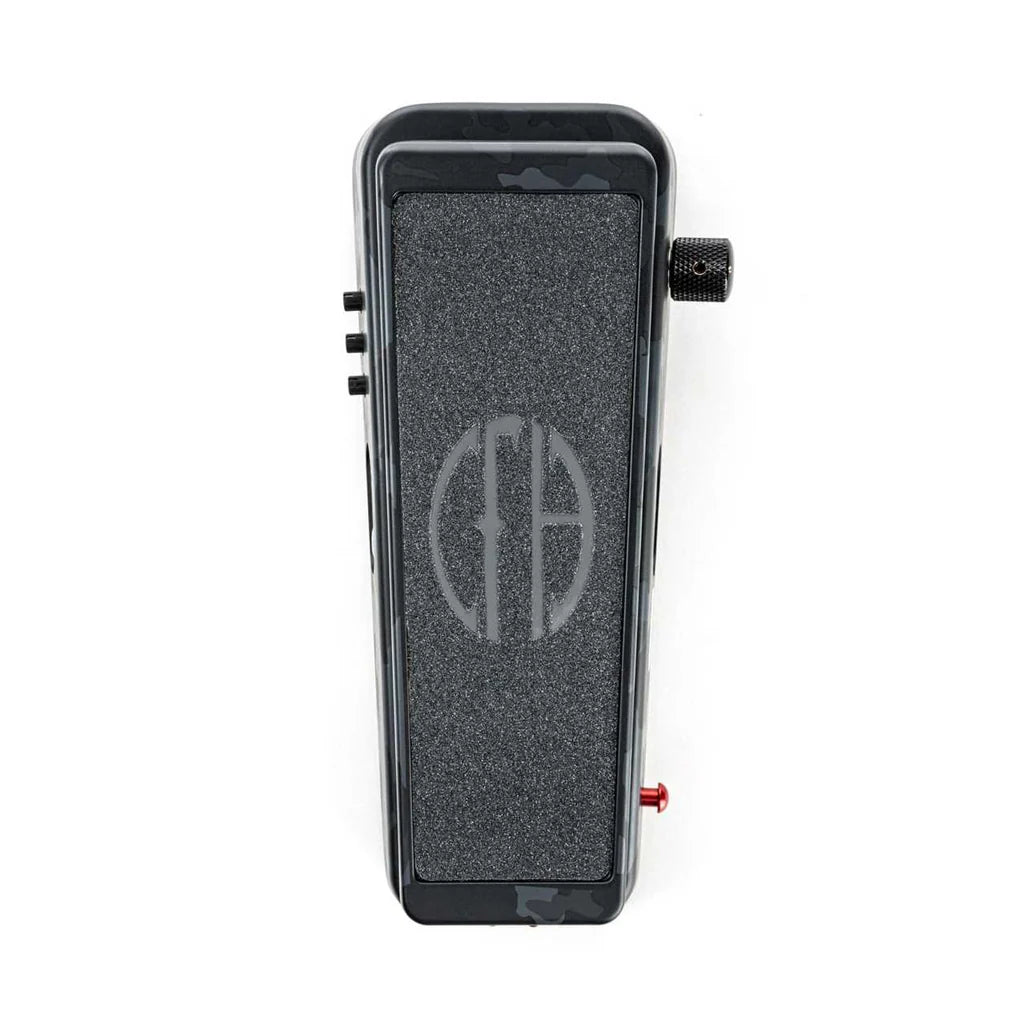

Dunlop Dimebag Cry Baby From Hell Wah
At Guitar Paradise we have a great range of Dunlop wah pedals, available both instore and online through our webstore!
The most versatile wah in our line up, this pedal was designed for players who need options on stage, featuring an extended sweep range, a 6-way frequency selector, a switchable boost, LEDs to indicate wah and boost status, and more.
This pedal can be powered by a 9-volt battery, a Dunlop ECB003 9-volt adapter, or the DC Brick, Iso-Brick, and Mini Iso-Brick power supplies (not included).
Dimebag Darrell combined a cowboy’s swagger with high-gain riffs and squealing pinch harmonic-laden leads. One of the most significant elements of his sound and dynamics was the Cry Baby Wah, and at a time when wah pedals had fallen out of fashion, Dime flew his wah flag high. Armed with his hard-earned expertise and insight from years of touring, he helped us devise this wah, the most versatile in our lineup.
Specifications
- Input Impedance 1mω
- Output Impedance <1 Kω
- Impedance
- Range 1 - Heel Down / Toe Down 440 Hz / 1.5 Khz To 2.2 Khz
- Range 2 - Heel Down / Toe Down 400 Hz / 1.3 Khz To 1.9 Khz
- Range 3 - Heel Down / Toe Down 375 Hz / 1.2 Khz To 1.8 Khz
- Range 4 - Heel Down / Toe Down 345 Hz / 1.0 Khz To 1.6 Khz
- Range 5 - Heel Down / Toe Down 295 Hz / 750 Hz To 1.4 Khz
- Range 6 - Heel Down / Toe Down 250 Hz / 1.2 Khz
- Filter Center Frequency
- Noise Floor -102 Dgv
- Maximum Gain at FC - (15 Dbv)
- Boost Range - (0.1 To 17 Db)
- Bypass - Buffered
- Current Draw - 2.5 mA
- Power Supply - 9 Volts DC
Image is for illustrative purposes only.
