Marshall Origin20H - 20w Electric Guitar Amplifier Head
At Guitar Paradise we have a great range of Marshall amplifiers, available both instore and online through our webstore!
High, Mid And Low Power With Powerstem, Power Reduction Technology
Powerstem, power reduction technology, allows you to have high or low power modes without compromising on sound quality.
Powerstem works by reducing the voltage rails around the power amplifier rather than using our traditional pentode/triode reduction methods. This offers power reduction without changing the sonic character, providing optimum tone and performance regardless of the volume level required by guitarists.
Tilt Control To Blend Your Sound
Using the tilt control, you can change the blend of your sound from normal to high treble. This is based on the multi-input technology of our more classic amps such as the 1959SLP and JTM45 but in a single controlled knob.
2-Way Footswitch Allows You To Control The Gain Boost
The gain boost feature, controlled via footswitch, provides you with a versatile tool for refining your sound. Allowing you to incorporate an additional level of gain, you can infuse your tone with a distinctive crunch. This dynamic capability empowers you to shape and evolve your sonic expression, providing a seamless path to introducing heightened intensity and character to your playing.
FX Loop
Retaining your sound’s clarity and authenticity is crucial to any guitar player. That's why the Origin20 Head features an FX loop that acts as a junction for pedals. Every time you play, it’ll sound like you and no one else.
General
- Model - Origin20H
- Range - Origin
- Channels - 1
- Technology - Valve
Electronics
- Output wattage - High power 20W, mid power approx 3W and low power approx 0.5W

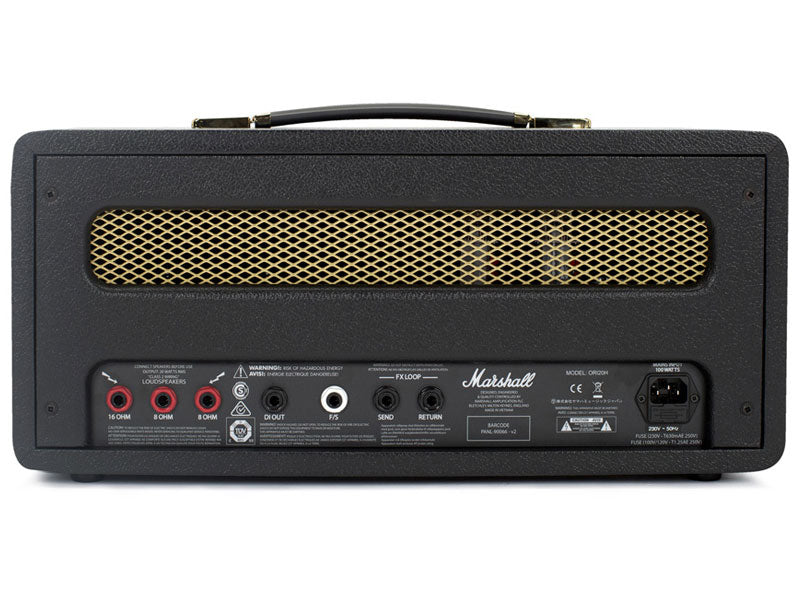

- Outputs - 3 x 1/4" jack sockets (16Ω load / 8Ω load) DI (1/4" jack)
- Inputs - 1 x 1/4" jack instrument input, footswitch

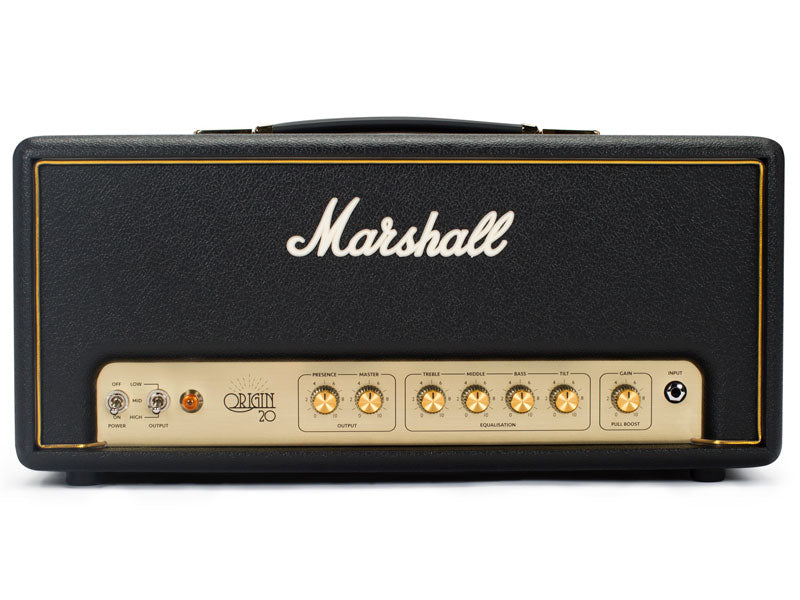

- Controls - Gain (Pull Boost), Tilt, Bass, Middle, Treble, Master, Presence, Powerstem Power Scaling
- Effects - None
- Effects loop - YES, 1 X SERIES SWITCHABLE
Valves
- Preamp valves - 2 X ECC83, 1 X ECC83 (PHASE SPLITTER)
- Power amp valves - 2 x EL34
Unit Dimensions
- Weight - 9.4kg
- Width - 520mm
- Height - 225mm
- Depth - 220mm
