MXR Bass Compressor Pedal
At Guitar Paradise we have a great range of MXR effects pedals, available both instore and online through our webstore!
The Bass Compressor provides recording-quality compression with Constant Headroom Technology and true bypass switching for keeping your low end tight and clean.
Take your favorite studio compressor to the stage with the MXR Bass Compressor. A complete array of controls—Attack, Release, Ratio, Input, and Output—makes it easy to fine-tune your sound, from subtle peak limiting to hard squashed compression effects. Its CHT™ Constant Headroom Technology gives you plenty of headroom and clear performance. This totally transparent compressor allows your full dynamic range to shine through until your signal reaches the compression threshold, which is indicated by the ten, highly visible gain-reduction status LEDs. It's all packed into a durable, lightweight aluminum-housing pedal that's the size of a Phase 90.
Specifications
- Input Impedance - (1 MΩ)
- Output Impedance - (600 Ω)
- Max Input Level - (+14 dBV)
- Max Output Level - (+8.5 dBV)
- Freq. Response - (±1 dB, 20 Hz to 20 kHz)
- Noise Floor - (-90 dBV)
- THD - (> 0.5%)
- Gain - (31 dB)
- Compression Ratio - (4:1, 8:1, 12:1, 20:1)
- Attack Time - (20 µs to 800 µs)
- Release Time - (50 ms to 1.1s)
- Bypass - True Hardwire
Current Draw
- LEDs OFF - (14 mA)
- LEDs ON - (19 mA)
- Power Supply - (9 volts DC)

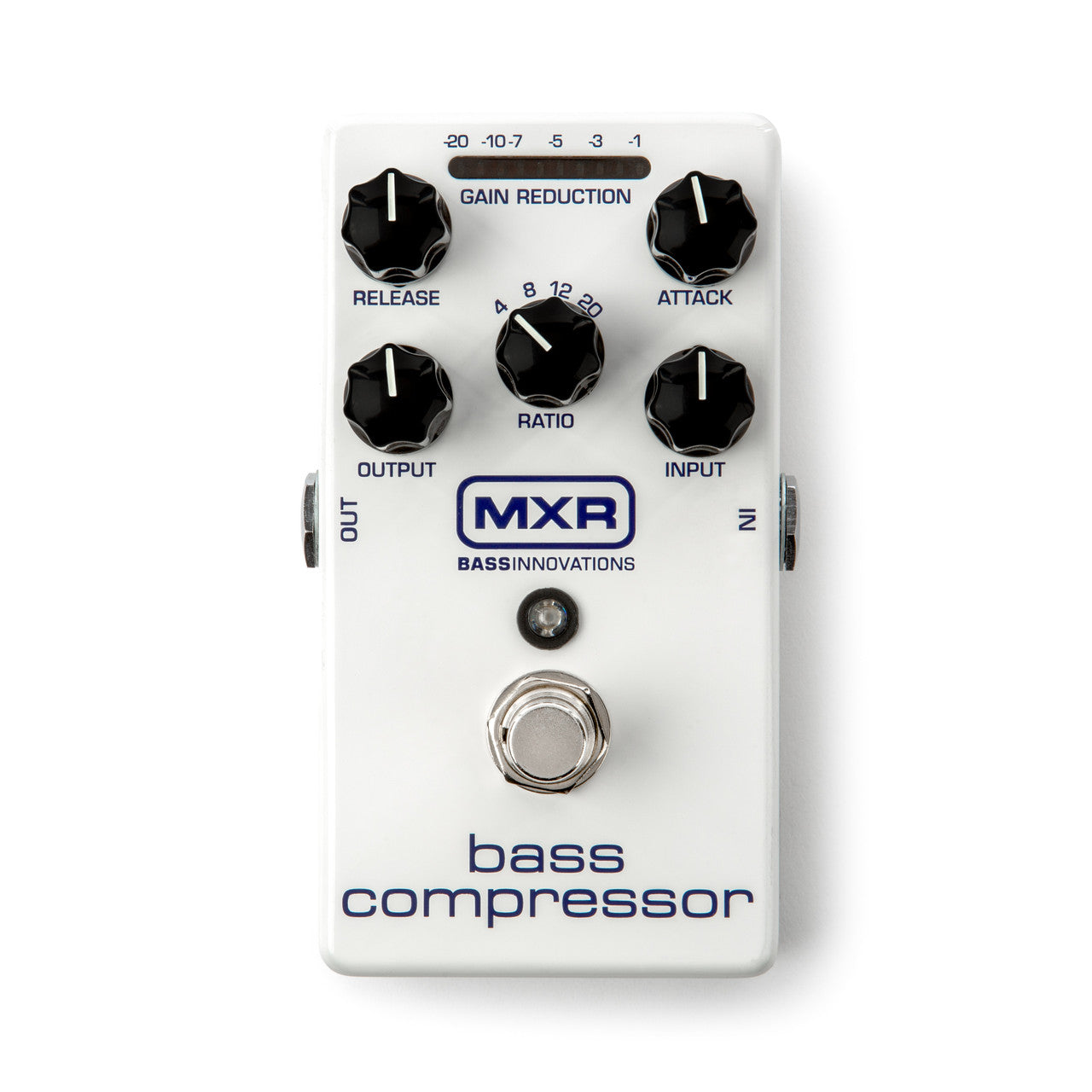

Image is for illustrative purposes only.
